FT-991A

Me and my FT-991A radios

If you know me you most likely know that I own 2 FT-991A radios(One is used primarly on HF the other on VHF/UHF), so what is my opinion on the radio? I love it. If you are looking for an all mode most band radio then I highly recommend it. I thought I would post the settings I use for the radio that seems to work best for me. If you want to look up the specs and such for the radio here is a link to the radio’s page on YAESU

911A

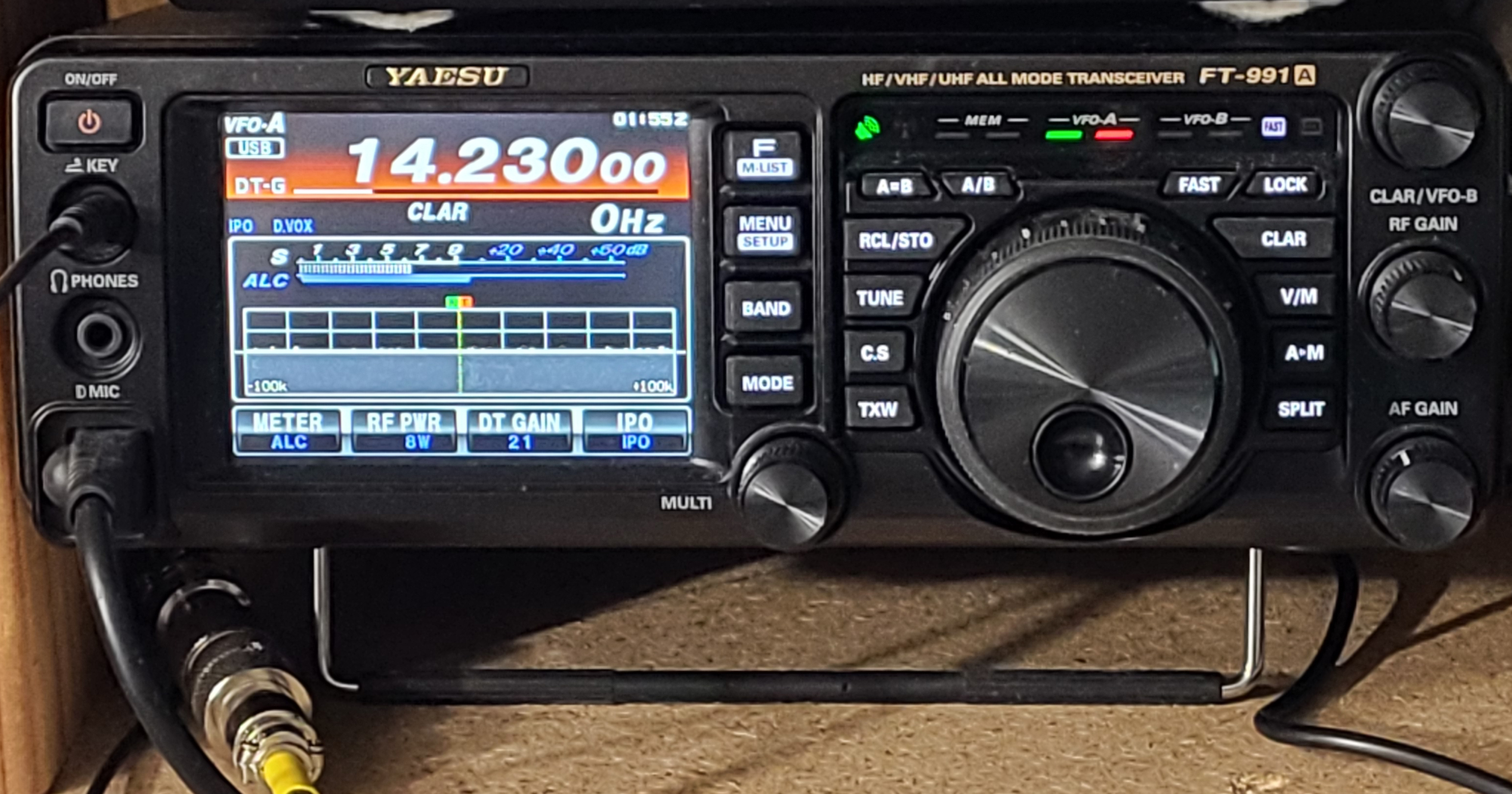

Tuned to the Analog SSTV call frequency on 20m

My 991A Settings

Below is the menu number and the setting I use. Items with ** indicates this is the default setting,Insidr parentheses is setting on VHF/UHF unit if different.

  • (1) 300msec**
  • (2) 700msec**
  • (3) 3000msec**
  • (4) SCOPE**
  • (5) 1sec**
  • (6) RED(GREEN)
  • (7) 1
  • (8) 4
  • (9) 2.0sec
  • (10) 50**
  • (11) 50**
  • (12) OFF
  • (13) NOR**
  • (14) 3.0**
  • (15) OFF**
  • (16) 1290**
  • (17) 0
  • (18) TEXT**
  • (19) TEXT**
  • (20) TEXT**
  • (21) TEXT**
  • (22) TEXT**
  • (23) 3msec**
  • (24) 30db**
  • (25) 8
  • (26) 50**
  • (27) -6:00
  • (28) GPS1**
  • (29) 38400bps
  • (30) 10msec**
  • (31) 38400bps
  • (32) 10msec**
  • (33) ENABLE**
  • (34) DISABLE**
  • (35) 5khz**
  • (36) OFF**
  • (37) DISABLE
  • (38) TIME**
  • (39) 0**
  • (40) RX**
  • (41) OFF**
  • (42) 6db/oct**
  • (43) OFF**
  • (44) 6db/oct**
  • (45) MIC**
  • (46) 50**
  • (47) DAKY**
  • (48) DATA**
  • (49) 50**
  • (50) 250hz**
  • (51) 18db/oct**
  • (52) 1200hz**
  • (53) 18db/oct**
  • (54) 50**
  • (55) OFF**
  • (56) SEMI
  • (57) 880msec
  • (58) 4msec**
  • (59) PITCH OFFSE**
  • (60) RTS
  • (61) 15msec**
  • (62) PSK**
  • (63) 1000**
  • (64) 0hz**
  • (65) 0hz**
  • (66) 300hz**
  • (67) 18db/oct**
  • (68) 3000hz**
  • (69) 18db/oct**
  • (70) REAR**
  • (71) RTS
  • (72) USB
  • (73) 50**
  • (74) MIC**
  • (75) 50**
  • (76) RTS
  • (77) USB
  • (78) 50**
  • (79) 1200**
  • (80) 100khz**
  • (81) 1000khz**
  • (82) 600khz**
  • (83) 5000khz**
  • (84) ON**(OFF)
  • (85) ON**(OFF)
  • (86) Tn-Rn**
  • (87) XXXXX**
  • (88) DISTANCE**
  • (89) mile**
  • (90) AUTO**
  • (91) ON**
  • (92) 300hz**
  • (93) 18db/oct**
  • (94) 3000hz**
  • (95) 18db/oct**
  • (96) SHIFT**
  • (97) NOR**
  • (98) NOR**
  • (99) 50**
  • (100) 170hz**
  • (101) 2125hz**
  • (102) 100hz**
  • (103) 6db/oct**
  • (104) 3000hz**
  • (105) 6db/oct**
  • (106) REAR
  • (107) 50**
  • (108) RTS
  • (109) USB
  • (110) 200-2800
  • (111) MEDIUM**
  • (112) -15**
  • (113) 10**
  • (114) WIDE**
  • (115) WATER FALL
  • (116) 200khz(500khz)
  • (117) RED(GREEN)
  • (118) GRAY(MULTI**)
  • (119) 200
  • (120) -9
  • (121) 2
  • (122) 900
  • (123) -5
  • (124) 2
  • (125) 2400
  • (126) 5**
  • (127) 2
  • (128) 200**
  • (129) -10
  • (130) 2**
  • (131) 900
  • (132) -6
  • (133) 2
  • (134) 2400
  • (135) 6
  • (136) 2
  • (137) 100**
  • (138) 100**
  • (139) 50**
  • (140) 50**
  • (141) LAMP
  • (142) DATA
  • (143) 50**
  • (144) 500msec**
  • (145) 50**
  • (146) 50**
  • (147) 100msec(320msec)
  • (148) 0**
  • (149) DISABLE**
  • (150) MANUAL**
  • (151) 146.550.00**
  • (152) HISTORY**
  • (153) AUTO**
